Stainless Steel Piping

  • 3/4" (22MM) and 1" (28MM)

    316L Stainless Steel

    • TF16 N7 00, 3/4" (22mm) 316L Stainless Steel pipe, 20 feet long

    • TF16 N9 00, 1" (28mm) 316L Stainless Steel pipe, 20 feet long

  • 1-1/2" (42MM) and 2" (60MM) Piping

    304 Stainless Steel

    • TX16 M4 00, 1-1/2" (42mm) 304 Stainless Steel pipe, 20 feet long

    • TX16 M6 00, 2" (60mm) 304 Stainless Steel pipe, 20 feet long

  • 3" (76MM) and 4" (101MM) Piping

    304 Stainless Steel

    • TX16 L1 00, 3" (76mm) 304 Stainless Steel pipe, 20 feet long

    • TX16 L3 00, 4" (101mm) 304 Stainless Steel pipe, 20 feet long

Contact Us for a Quote Today!

  • EPDM is a type of rubber with very good elastic properties. Max working temperature is 140°F (60°C). It is also known to be highly durable with over 50 years of life expectancy for this material. Compatible media includes Process Water +Additives.

    FKM, most commonly known at “Viton”™ is exceptionally resistant to heat. Max working temperature is 194°F (90°C) at 100 PSI. Compatible media includes Oils, Compressed Air, Industrial / Inert Gas, Process Water + Additives, Select Acids.

    For a full list of chemical compatibility, please refer to the chart.

    • To Corrosion

    • To Aggressive Environments

    • To Mechanical Shocks

    • To Thermal Variations

    • To U.V.

Fittings for 3” (76MM) and 4” (101MM)

  • 90° Elbow

    • RX02 L1 01, 3” (76mm) 90° Elbow, EPDM Seal

    • RX02 L1 02, 3” (76mm) 90° Elbow, FKM Seal

    • RX02 L3 01, 4" (101mm) 90° Elbow, EPDM Seal

    • RX02 L3 02, 4" (101mm) 90° Elbow, FKM Seal

  • Union Connector

    • RR01 L1 02, 3" (76mm) Union Connector, EPDM Seal

    • RR01 L1 02, 3" (76mm) Union Connector, FKM Seal

    • RR01 L3 01, 4" (101mm) Union Connector, EPDM Seal

    • RR01 L3 02, 4" (101mm) Union Connector, FKM Seal

  • Equal Tee

    • RX04 L1 00, 3" (76mm) Equal Tee

    • RX04 L3 00, 4" (101mm) Equal Tee

  • 45° Elbow

    • RX12 L1 01, 3” (76mm) 45° Elbow, EPDM Seal

    • RX12 L1 02, 3” (76mm) 45° Elbow, FKM Seal

    • RX12 L3 01, 4” (101mm) 45° Elbow, EPDM Seal

    • RX12 L3 02, 4” (101mm) 45° Elbow, FKM Seal

  • Stainless Steel Pipe Hanger

    Rubber Insulated Pipe Hanger

    • ER01 L1 00, 3” (76mm) Stainless Steel Pipe Hanger (Rubber Insulated)

    • ER01 L3 00, 4” (101mm) Stainless Steel Pipe Hanger (Rubber Insulated)

  • End Cap

    • RX25 L1 01, 3” (76mm) End Cap, EPDM Seal

    • RX25 L1 02, 3” (76mm) End Cap, FKM Seal

    • RX25 L3 01, 4” (101mm) End Cap, EPDM Seal

    • RX25 L3 02, 4” (101mm) End Cap, FKM Seal

  • Male NPT Threaded Connector

    • RR21 L1N24, 3” (76mm) 3” Male NPT Threaded Adapter

  • Stainless Steel Flange Adapter

    • RX30 L1 00, 3" (101mm) DIN Standard Steel Flange Adapter

    • RX31 L1 00, 3" (101mm) ANSI Standard Steel Flange Adapter

    • RX30 L3 00, 4" (101mm) DIN Standard Steel Flange Adapter

    • RX31 L3 00, 4" (101mm) ANSI Standard Steel Flange Adapter

  • Stainless Steel Butterfly Valve

    All valve contain a FKM Seal

    • VR02 L1 01US, 3" (76mm) Butterfly Valve, EPDM Seal

    • VR02 L1 02US, 3" (76mm) Butterfly Valve, FKM Seal

    • VR02 L3 01US, 4" (101mm) Butterfly Valve, EPDM Seal

    • VR02 L3 02US, 4" (101mm) Butterfly Valve, FKM Seal

  • Reducing Tee

    • RX04 L1 M4, 3" (76mm) to 1-1/2" (42mm) Reducing Tee

    • RX04 L1 M6, 3" (76mm) to 2" (60mm) Reducing Tee

    • RX04 L3 M4, 4" (101mm) to 1-1/2" (42mm) Reducing Tee

    • RX04 L3 M6, 4" (101mm) to 2" (60mm) Reducing Tee

  • Plug-In Reducer

    • RX66 L1 M6, 3" (76mm) to 2" (60mm) Plug-In Reducer

    • RX66 L3 M6, 4" (101mm) to 3" (76mm) Plug-In Reducer

  • Saddle Reducing Bracket

    • RR89 L1N08 01, 3" (76mm) Saddle Reducing Bracket w/ 1" Female Threaded NPT Drop Outlet (EPDM Seal)

    • RR89 L1N08 02, 3" (76mm) Saddle Reducing Bracket w/ 1" Female Threaded NPT Drop Outlet (FKM Seal)

  • 1" Female NPT Reducing Tee

    • RX20 L1N04, 3" (76mm) 1/2" Female NPT Threaded Reducing Tee

    • RX20 L3N04, 4" (101mm) 1/2" Female NPT Threaded Reducing Tee

Contact Us for a Quote Today!

Fittings for 1-1/2” (42MM) and 2” (60MM)

  • 90° Elbow

    • RP02 M4 01, 1-1/2" (42mm) 90° Elbow w/ EPDM Seal

    • RP02 M4 02, 1-1/2" (42mm) 90° Elbow w/ FKM Seal

    • RP02 M6 01, 2" (60mm) 90° Elbow w/ EPDM Seal

    • RP02 M6 02, 2" (60mm) 90° Elbow w/ FKM Seal

  • Union Connector

    • RP06 M4 01, 1-1/2" (42mm) Union Connector w/ EPDM Seal

    • RP06 M4 02, 2" (60mm) Union Connector w/ FKM Seal

    • RP06 M6 01, 2" (60mm) Union Connector w/ EPDM Seal

    • RP06 M6 02, 1-1/2" (42mm) Union Connector w/ FKM Seal

  • 3" (76MM) and 4" (101MM) Piping

    • RP04 M4 01, 1-1/2" (42mm) Equal Tee w/ EPDM Seal

    • RP04 M4 02, 1-1/2" (42mm) Equal Tee w/ FKM Seal

    • RP04 M6 01, 2" (60mm) Equal Tee w/ EPDM Seal

    • RP04 M6 02, 2" (60mm) Equal Tee w/ FKM Seal

  • 45° Elbow

    • RX12 M4 00, 1-1/2" (42mm) 45° Elbow

    • RX12 M6 00, 2" (60mm) 45° Elbow

  • Stainless Steel Pipe Hanger

    • EX01 M4 01, 1-1/2" (42mm) Pipe Hanger (Anvil/Clevis style)

    • EX01 M6 01, 2" (60mm) Pipe Hanger (Anvil/Clevis style)

  • End Cap

    • RR25 M4 00, 1-1/2" (42mm) End Cap

    • RR25 M6 00, 2" (60mm) End Cap

  • Male NPT Threaded Adapter

    • RR05 M4N10, 1-1/2" (42mm) to 1-1/4"" Male NPT Threaded Adapter

    • RR05 M4N12, 1-1/2" (42mm) to 1-1/2"" Male NPT Threaded Adapter

    • RR05 M6N06, 2" (60mm) to 3/4" Male NPT Threaded Adapter

    • RR05 M6N16, 2" (60mm) to 2" Male NPT Threaded Adapter

    • RR05 M6N20, 2" (60mm) to 2-1/2" Male NPT Threaded Adapter

  • Stainless Steel Ball Valve

    • XVP502SS-4, 1/4" Lockable Double Female NPT Threaded Stainless Steel Ball Valve w/ PTFE Seal

    • XVP502SS-8, 1/2" Lockable Double Female NPT Threaded Stainless Steel Ball Valve w/ PTFE Seal

    • XVP502SS-12, 3/4" Lockable Double Female NPT Threaded Stainless Steel Ball Valve w/ PTFE Seal

    • XVP502SS-16, 1" Lockable Double Female NPT Threaded Stainless Steel Ball Valve w/ PTFE Seal

    • XVP502SS-24, 1-1/2" Lockable Double Female NPT Threaded Stainless Steel Ball Valve w/ PTFE Seal

    • XVP502SS-32, 2" Lockable Double Female NPT Threaded Stainless Steel Ball Valve w/ PTFE Seal

  • Stainless Steel Butterfly Valve

    • VR02 M4 01, 1-1/2" (42mm) Butterfly Valve, EPDM Seal

    • VR02 M4 02, 1-1/2" (42mm) Butterfly Valve, FKM Seal

    • VR02 M6 01, 2" (60mm) Butterfly Valve, EPDM Seal

    • VR02 M6 02, 12" (60mm) Butterfly Valve, FKM Seal

Contact Us for a Quote Today!

Fittings for 3/4” (22MM) and 1” (28MM)

  • 316L Stainless Steel Elbow

    316L Stainless Steel

    • RF02 N7 01, RF02 N7 02, 3/4" (22mm) 316L Stainless Steel 90° Elbow, EPDM Seal

    • RF02 N7 02, 3/4" (22mm) 316L Stainless Steel 90° Elbow, FKM Seal

  • 316L Stainless Steel 90° Elbow

    • RF02 N7 00, 3/4" (22mm) 316L Stainless 90° Bent Pipe Elbow

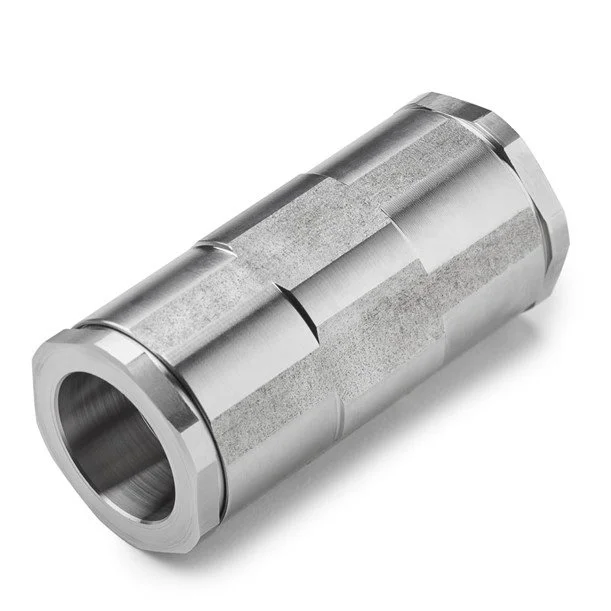

  • 316L Stainless Steel Union Connector

    • RF06 N7 01, 3/4" (22mm) 316L Stainless Steel Union Connector, EPDM Seal

    • RF06 N7 02, 3/4" (22mm) 316L Stainless Steel Union Connector, FKM Seal

  • 316L Stainless Steel Wall Bracket

    • RF36 06N04, 3/4" Female NPT Threaded 3 Port 316L Stainless Steel Wall Bracket w/ 1/2" Female NPT Threaded Ports

  • 316L Stainless Steel Male Threaded Adapter

    • RF05 N7N06, 3/4" (22mm) 3/4" Male NPT Threaded Adapter

  • Brass 90° Elbow

    • RR02 N7 01, 3/4" (22mm) 90° Elbow, EPDM Seal

    • RR02 N7 02, 3/4" (22mm) 90° Elbow, FKM Seal

    • RR02 N9 01, 1" (28mm) 90° Elbow, EPDM Seal

    • RR02 N9 02, 1" (28mm) 90° Elbow, FKM Seal

  • Brass Equal Tee

    • RR04 N7 01, 3/4" (22mm) Equal Tee, EPDM Seal

    • RR04 N7 02, 3/4" (22mm) Equal Tee, FKM Seal

    • RR04 N9 01, 1" (28mm) Equal Tee, EPDM Seal

    • RR04 N9 02, 1" (28mm) Equal Tee, FKM Seal

  • Brass Union Connector

    • RR06 N7 01, 3/4" (22mm) Union Connector, EPDM Seal

    • RR06 N7 02, 3/4" (22mm) Union Connector, FKM Seal

    • RR06 N9 01, 1" (28mm) Union Connector, EPDM Seal

    • RR06 N9 02, 1" (28mm) Union Connector, FKM Seal

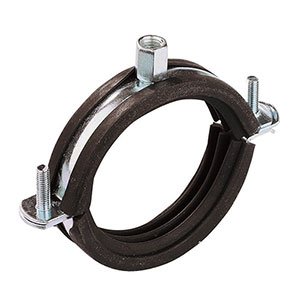

  • Pipe Hanger / Fixing Clip

    • EX01 N7 00, 3/4" (22mm) Pipe Fixing Clip (Rubber Insulated w/ thread for M8 threaded rod)

    • EX01 N9 00, 1" (28mm) Pipe Hanger (Anvil/Clevis style)

  • End Cap

    • RR25 N7 01, 3/4" (22mm) End Cap, EPDM Seal

    • RR25 N7 02, 3/4" (22mm) End Cap, FKM Seal

    • RR25 N9 01, 1" (28mm) End Cap. EPDM Seal

    • RR25 N9 02, 1" (28mm) End Cap, FKM Seal

  • Brass Male Threaded Connector

    • RR05 N7N06 01, 3/4" (22mm) to 3/4" Male NPT Threaded Stud Connector, EPDM Seal

    • RR05 N7N06 02, 3/4" (22mm) to 3/4" Male NPT Threaded Stud Connector, FKM Seal

    • RR04 N9 N7 01, 1" (28mm) to 3/4" (22mm) Reducing Tee, EPDM Seal

    • RR04 N9 N7 02, 1" (28mm) to 3/4" (22mm) Reducing Tee, FKM Seal

    • RR05 N9N08 01, 1" (28mm) to 1" Male NPT Threaded Stud Connector, EPDM Seal

    • RR05 N9N08 02, 1" (28mm) to 1" Male NPT Threaded Stud Connector, FKM Seal

  • Brass Ball Valve

    • XVP500P-4, 1/4" Lockable Double Female NPT Threaded Brass Ball Valve w/ PTFE Seal

    • XVP500P-8, 1/2" Lockable Double Female NPT Threaded Brass Ball Valve w/ PTFE Seal

    • XVP500P-12, 3/4" Lockable Double Female NPT Threaded Brass Ball Valve w/ PTFE Seal

    • XVP500P-16, 1" Lockable Double Female NPT Threaded Brass Ball Valve w/ PTFE Seal

    • XVP500P-24, 1-1/2" Lockable Double Female NPT Threaded Brass Ball Valve w/ PTFE Seal

    • XVP500P-32, 2" Lockable Double Female NPT Threaded Brass Ball Valve w/ PTFE Seal

Contact Us for a Quote Today!
